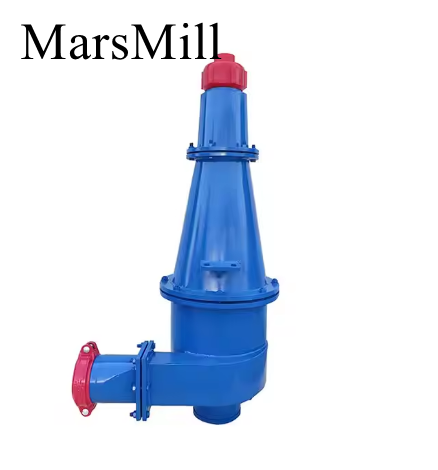

Name: 12 inch hydrocyclone ( Outside iron inside pu material cyclone)
Could replace Haiwang desander hydrocyclone
Application: Hydrocyclone use for mud cleaner, desander, desilter Oilfield Drilling
Useful: When you operating a system with desander or desilter hydrocyclones, it is important to regularly inspect the cyclones for wear or demaged components. They are several sections of a hydrocyclone that are impacted by the abrasive solids in the slurry stream during operation. Hydrocyclone performance is crucial when achieving proper liquid/solids separation.

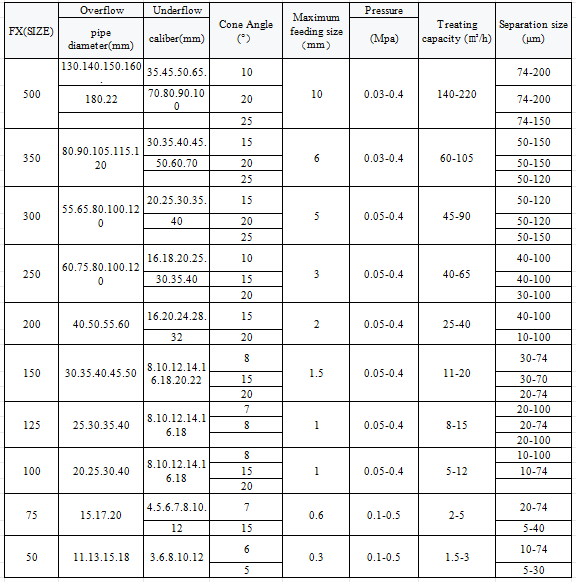

Parameter
|
FX(SIZE)
|
Overflow pipe diameter(mm) |
Underflow caliber(mm) |
Cone Angle (°） |
Maximum feeding size（mm）
|
Pressure
(Mpa)
|
Treating capacity(㎡/h)
|
Separation size (μm)
|
|
710
|
240.260.280
|
120.140.160
|
20
|
16
|
0.03-0.4
|
400-550
|
74-250
|
|
660
|
180.200.200.220.
240
|
80.110.150
|
20
|
16
|
0.03-0.4
|
250-360
|
74-220
|
|
610
|
160.180.200.220
|
90.100.110
|
20
|
12
|
0.03-0.4
|
200-260
|
74-200
|
|
500
|
130.140.150.160.
180.220
|
35.45.50.65.
70.80.90.100
|
10
20
25
|
10
|
0.03-0.4
|
140-220
|
74-200
74-200
74-150
|
|
350
|
80.90.105.115.120
|
30.35.40.45.
50.60.70
|
15
20
25
|
6
|
0.03-0.4
|
60-105
|
50-150
50-150
50-120
|
|
300
|
55.65.80.100.120
|
20.25.30.35.
40
|
15
20
25
|
5
|
0.05-0.4
|
45-90
|
50-120
50-120
50-150
|
|
250
|
60.75.80.100.120
|
16.18.20.25.
30.35.40
|
10
15
20
|
3
|
0.05-0.4
|
40-65
|
40-100
40-100
30-100
|
|
200
|
40.50.55.60
|
16.20.24.28.
32
|
15
20
|
2
|
0.05-0.4
|
25-40
|
40-100
10-100
|
|
165
|
40.50.55.60
|
30.35.40.45.
50
|
20
6
|
1.5
|
0.05-0.4
|
20-30
|
40-90
|
|
150
|
30.35.40.45.50
|
8.10.12.14.16.18.20.22
|
8
15
20
|
1.5
|
0.05-0.4
|
11-20
|
30-74
30-74
20-74
|
|
125
|
25.30.35.40
|
8.10.12.14.16.18
|
7
8
|
1
|
0.05-0.4
|
8-15
|
20-100
20-74
20-100
|
|
100
|
20.25.30.40
|
8.10.12.14.16.18
|
8
15
20
|
1
|
0.05-0.4
|
5-12
|
10-100
10-74
|
|
75
|
15.17.20
|
4.5.6.7.8.10.
12
|
7
15
|
0.6
|
0.1-0.5
|
2-5
|
20-74
5-40
|
|
50
|
11.13.15.18
|
3.6.8.10.12
|
6
5
|
0.3
|
0.1-0.5
|
1.5-3
|
|
|
|
|
|
|
|
|
|
As a common separation and classification equipment, the working principle of cyclone is centrifugal sedimentation. When the two-phase (or three-phase) mixture to be separated enters the cyclone tangentially from the periphery of the cyclone at a certain pressure, a strong three-dimensional elliptical strong rotational shear turbulent motion is generated.
Due to the particle size difference (or density difference) between coarse particles (or heavy phase) and fine particles (or light phase), the centrifugal force, centripetal buoyancy, fluid drag force and other sizes are different, and most of the coarse particles (or heavy phase) are discharged through the bottom flow port of the cyclone, while most of the fine particles (or light phase) are discharged by the overflow pipe, so as to achieve the purpose of separation and classification.
