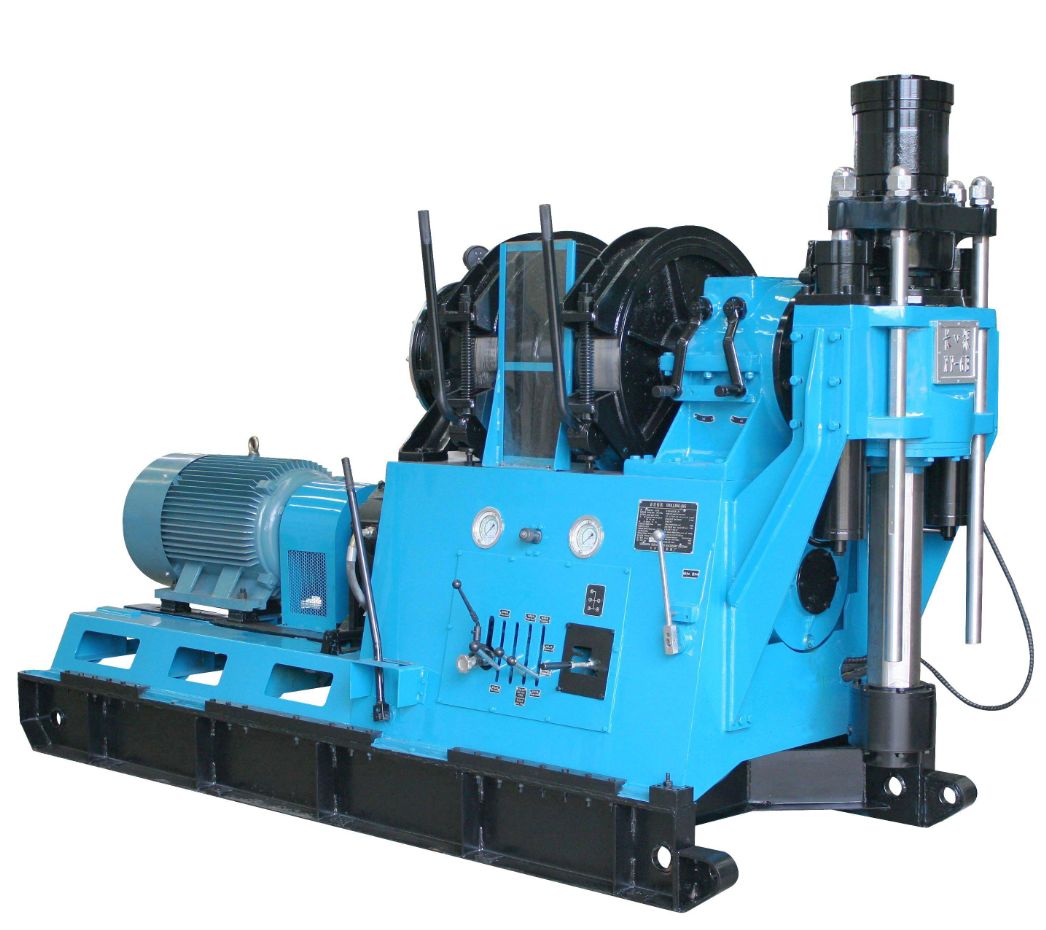

XY-6 is a core drilling rig with large drilling capability and greatly improved. It mainly used for industries like geology,metallurgy,coal,hydrology,civil engineering projects,etc. It's alsosuitable for geological prospection,shallow petroleum and fas exploration,mining ventilatio,sewage drilling, water well drilling and large piling hole drilling .
| 1. Drilling Capability | |||||||
| Core Drilling | |||||||
| Drill Rods Type | (mm) | (m) | |||||
| China Domestic Drill Rods | Inner Outer Flat Drill Rod | φ54×6 | 2200 | ||||
| φ67×6 | 1700 | ||||||
| Inner Reinforced Drill Rod | φ50×5.5 | 2550 | |||||
| φ60×6 | 1900 | ||||||
| Wire-Line Drill Rod | φ55.5×4.75 | 2600 | |||||
| φ71×5 | 1900 | ||||||
| φ89×5 | 1500 | ||||||
|
DCDMA DCDMA Drill Rods |
Inner Reinforced Drill Rods |
BW | 2600 | ||||
| NW | 1950 | ||||||
| HW | 1400 | ||||||
| Wire-Line Drill Rod | BQ | 2700 | |||||
| NQ | 2300 | ||||||
| HQ | 1800 | ||||||
| 2. Drill Angle | 90°~80°(360°) | ||||||
| 3. Engine | Model | Power | RPM | Weight | |||
| (1) Electro-Motor | Y280S-4 | 75KW | 1480 r/min | 560kg | |||
| (2) Diesel Engine | YC6B135Z-D20 | 90KW | 1500 r/min | 650kg | |||
| 4. Rotary Table | |||||||
| Type: Dual Hydraulic Cylinder Feeding Mechanical Rotary Type | |||||||
| Spindle Through Hole Diameter | φ116mm | ||||||
| Spindle Rotary Speed | |||||||
| Forward(r/min) | 79 120 190 210 320 370 570 980 | ||||||
| Reverse(r/min) | 45 138 | ||||||
| Max Spindle Torque | 8500N·m | ||||||
| Spindle Travel | 600mm | ||||||
| Max Spindle Lifting Force | 200kN | ||||||
| Max Spindle Feeding Force | 150kN | ||||||
| 5. Hoist | |||||||
| Type: Planetary Gearing Engaging | |||||||
| Steel Rope Diameter | φ21.5mm | ||||||
| Bobbin Capacity | 120m | ||||||
| Max Pulling Capability(single rope) | 90kN | ||||||
| Pulling Speed | |||||||
| Bobbin Rope Speed(m/s) | 0.77 1.33 2.07 3.55 2.35 4.00 6.28 10.77 | ||||||
| 6. Clutch | |||||||
| Type: Auman Automobile 380 Clutch | |||||||
| 7. Hydraulic System | |||||||
| (1) System Pressure | |||||||
| Nominal Pressure | 8MPa | ||||||
| Max Pressure | 12MPa | ||||||
| (2) Oil Pump | |||||||
| Type: Gear Oil Pump | CBQL-F525/F520-CLH | ||||||
| Displacement | 25/20mL/r | ||||||
| Nominal Speed | 2500 r/min | ||||||
| Nominal Pressure | 20/20MPa | ||||||
| Max Pressure | 25/25MPa | ||||||
| 8. Frame | |||||||
| Type: Sliding(with sliding base plate) | |||||||
| Rig Travel Distance | 600mm | ||||||
|
Distance allowable for handling drill tooling |
380mm | ||||||
| 9. Dimension(L*W*H) | 4000×1350×2300mm(With Diesel Engine) | ||||||
| 3790×1350×2300mm(With Electro-Motor) | |||||||
| 10. Rig Weight(Engine Not Included) | 4600kg | ||||||
