  • Product description: replace Desilter 4 inch pu material derrick desilter hydrocyclone
  • INQUIRY

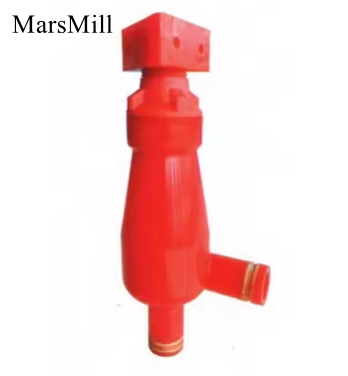

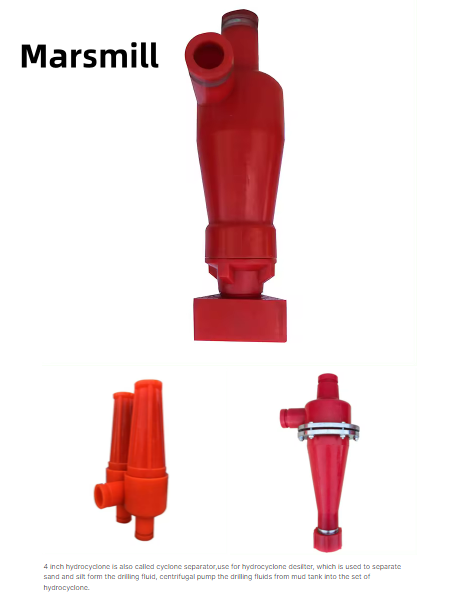

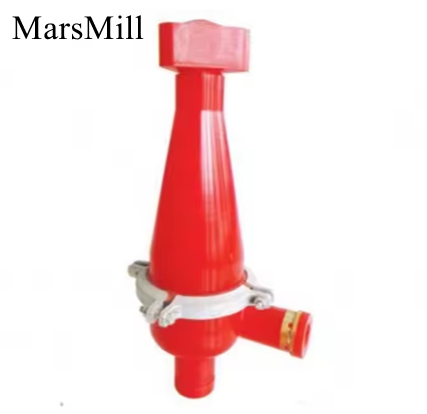

Name:Desilter 4 inch pu material hydrocyclone

Here are many type of desilter cyclone for you choose

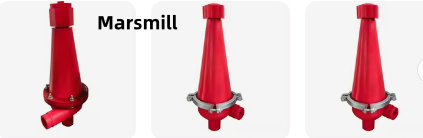

Different type 4 inch desilter hydrocyclone




Matching elbow and clamps

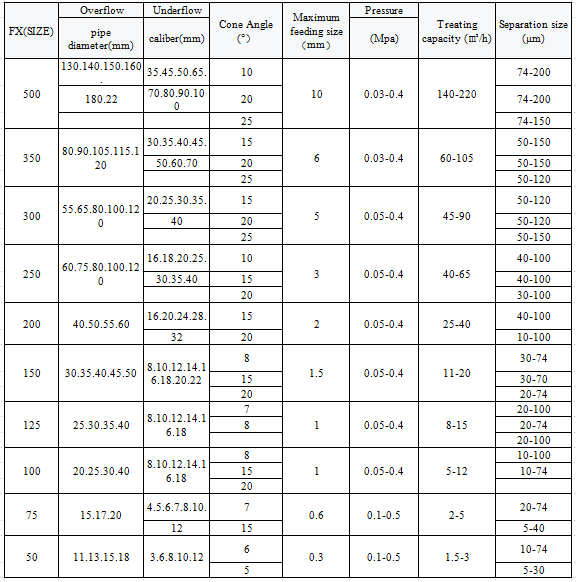

FX(SIZE)

Overflow

pipe diameter(mm)

Underflow

caliber(mm)

Cone Angle(°)
Maximum feeding size(mm)
Pressure
(Mpa)
Treating capacity (㎡/h)
Separation size (μm)
710
240.260.280
120.140.160
20
16
0.03-0.4
400-550
74-250
660
180.200.200.220.
240
80.110.150
20
16
0.03-0.4
250-360
74-220
610
160.180.200.220
90.100.110
20
12
0.03-0.4
200-260
74-200
500
130.140.150.160.
180.220
35.45.50.65.
70.80.90.100
10
20
25
10
0.03-0.4
140-220
74-200
74-200
74-150
350
80.90.105.115.120
30.35.40.45.
50.60.70
15
20
25
6
0.03-0.4
60-105
50-150
50-150
50-120
300
55.65.80.100.120
20.25.30.35.
40
15
20
25
5
0.05-0.4
45-90
50-120
50-120
50-150
250
60.75.80.100.120
16.18.20.25.
30.35.40
10
15
20
3
0.05-0.4
40-65
40-100
40-100
30-100
200
40.50.55.60
16.20.24.28.
32
15
20
2
0.05-0.4
25-40
40-100
10-100
165
40.50.55.60
30.35.40.45.
50
20
6
1.5
0.05-0.4
20-30
40-90
150
30.35.40.45.50
8.10.12.14.16.18.20.22
8
15
20
1.5
0.05-0.4
11-20
30-74
30-74
20-74
125
25.30.35.40
8.10.12.14.16.18
7
8
1
0.05-0.4
8-15
20-100
20-74
20-100
100
20.25.30.40
8.10.12.14.16.18
8
15
20
1
0.05-0.4
5-12
10-100
10-74
75
15.17.20
4.5.6.7.8.10.
12
7
15
0.6
0.1-0.5
2-5
20-74
5-40
50
11.13.15.18
3.6.8.10.12
6
5
0.3

0.1-0.5
1.5-3

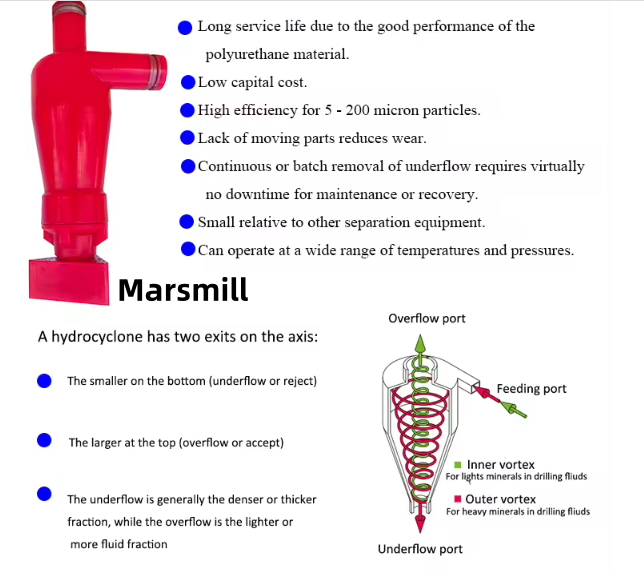

  As a common separation and classification equipment, the working principle of cyclone is centrifugal sedimentation. When the two-phase (or three-phase) mixture to be separated enters the cyclone tangentially from the periphery of the cyclone at a certain pressure, a strong three-dimensional elliptical strong rotational shear turbulent motion is generated.

Due to the particle size difference (or density difference) between coarse particles (or heavy phase) and fine particles (or light phase), the centrifugal force, centripetal buoyancy, fluid drag force and other sizes are different, and most of the coarse particles (or heavy phase) are discharged through the bottom flow port of the cyclone, while most of the fine particles (or light phase) are discharged by the overflow pipe, so as to achieve the purpose of separation and classification.
