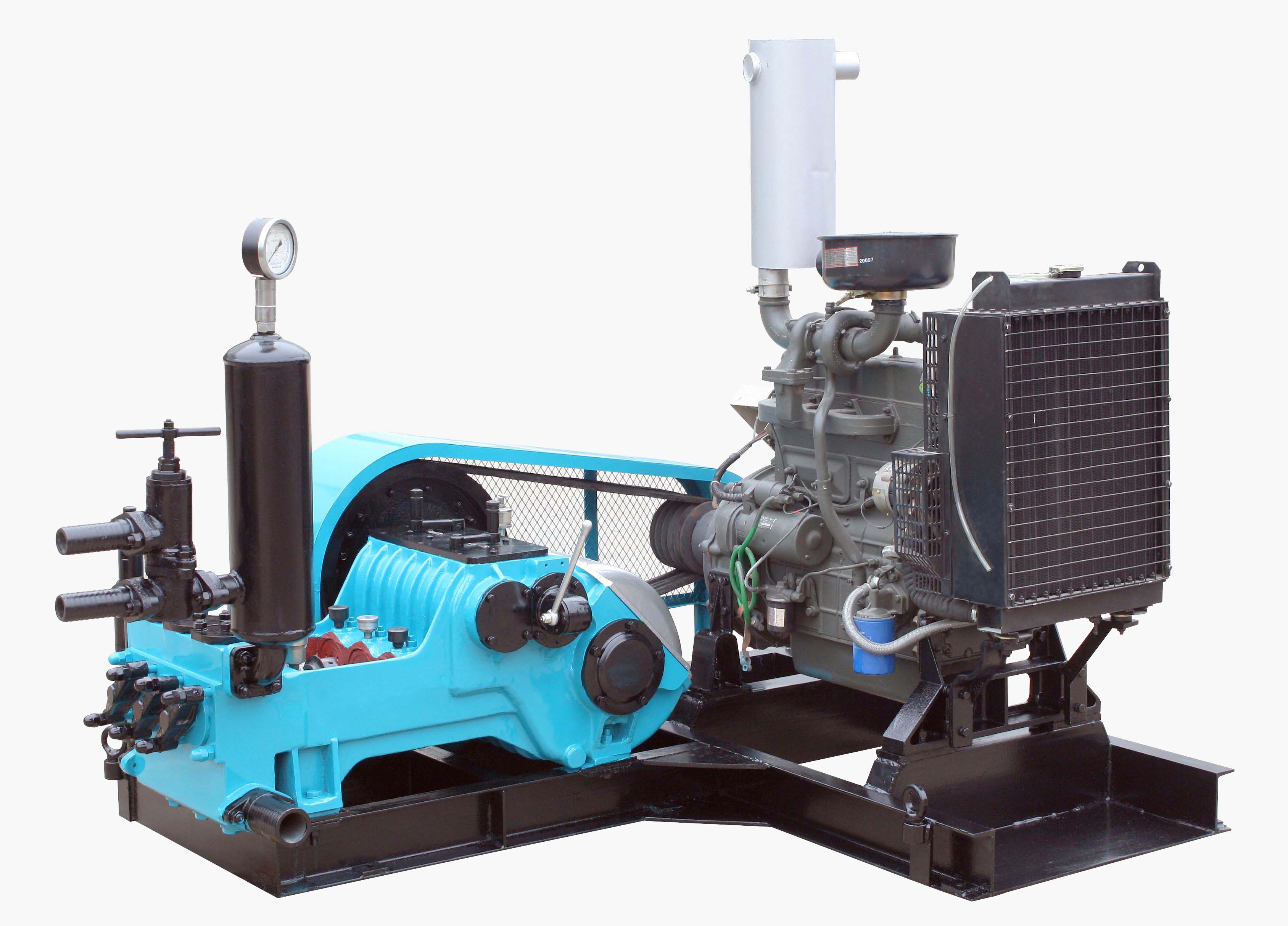

BW-320 Mud Pump

Product description: BW-320 Mud Pump
INQUIRY

Specifications

Triplex reciprocating plunger pump, for drilling 0-2500m, max pressure 10Mpa, max flow 320L/min.

BW-320 is a triplex(3-cylinders) reciprocating plunger pump, has two cylinder diameter and four gear speed which bringgs 8 different flow for option. It can be used for hydraulic impact drilling pump within depth 1000m, also can be used for auger drilling, turbo drilling within 1500m, as well as supplying mud for conventional core drilling within 2500 m. It has reliable performance, long life, with small and compact dimension. The pump is an ideal product for teological exploration as well as civel engineering drilling work.

Type	Horizontal three cylinder single action reciprocating plunger pump
Travel	110
Cylinder Diameter(mm)	80				60
Pump Speed(min-1)	214	153	109	78	214	153	109	78
Displacement(L/min)	320	230	165	118	180	130	92	66
Pressure(MPa)	4	5	6	8	6	8	9	10
Volumetric Efficiency(%)	90
Total Efficiency(%)	78
Power Needed(kw)	30
Large Belt Nodal Diameter(mm)	φ480(C×5) φ480(C×5)
Speed Input(r/min)	535
Suction Height(m)	2.5
Suction Pipe Diameter(mm)	φ76
Discharging Pipe Diameter(mm)	φ51
Dimension(LxWxH)(mm)	1280×855×720
	Single Pump(Without Engine and Air Chamber)
	1905×1100×1200
	Entire Pump( Without Engine and Air Chamber)
Weight(kg)	650 Single Pump(Without Engine and Air Chamber)
	1000 Entire Pump( Without Engine and Air Chamber)
